DIY Plans: Pergola Project: Page 1

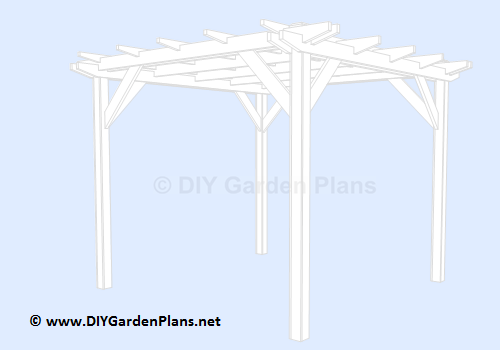

Simple Design

Material List For A 10'x10' Pergola

Disc. Qty. Size
4×4 presure-treated post 4 9′
2×6 (support beams) 4 12′
2×6 (crossbeams) 7 12′
2×6 (brace) 4 3′
2×6 (brace) 4 3′ 5″
2×4 (slats) 5 12′
2×6 (post caps) 4 5 1/2″
trim (for 4×4 post cut to size)
HARDWARE
4×4 post anchors (plus anchor screws and nails) 4
3″ outdoor screws
4″ outdoor screws
2″ finishing nails
3″ finishing nails
construction adhesive

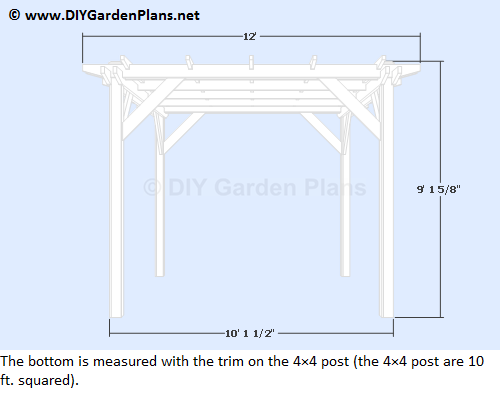

Measurements


DIY Pergola Project: Page: 1 2 3 4 5 >>
