DIY Plans: Adirondack Chair



adirondack chair



Adirondack Chair: Shopping List

Since lumber can be purchased in different sizes, the shopping list will vary. Study the plans and make changes to the shopping list if required.

Disc. Qty. Size

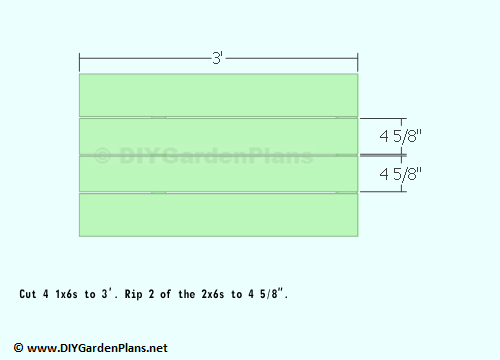

(1x6) Back Slats 1 12'
(1x4) Arm, Seat Slats, Front Seat Support, Back Leg Support, Top Back Support 2 10'
(2x4) Leg, Seat Support, Center Back Support, Bottom Back Support 2 8'
Hardware

3/8" Carriage bolt, nut, washer 4 3 1/2"
1/4" Carriage bolt, nut, washer 4 2 1/2"
Exterior Screws   2"
Exterior Screws   1 1/4"
Exterior Screws   3"



Dimensions

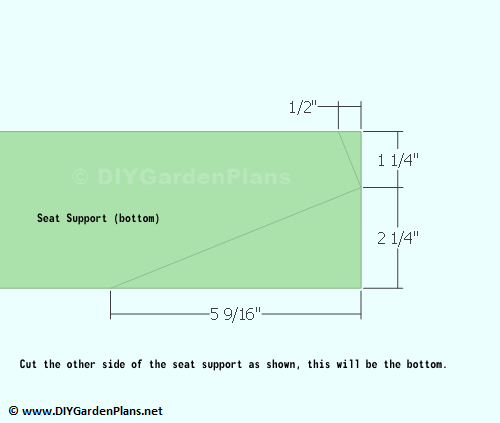

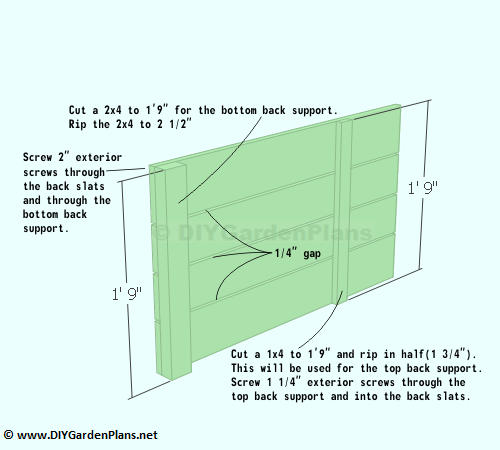

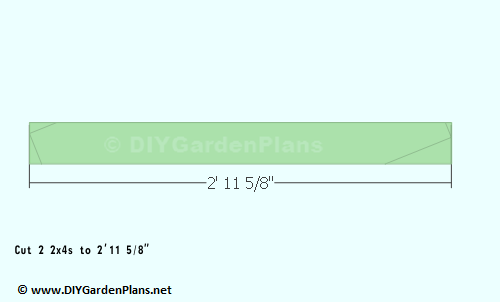

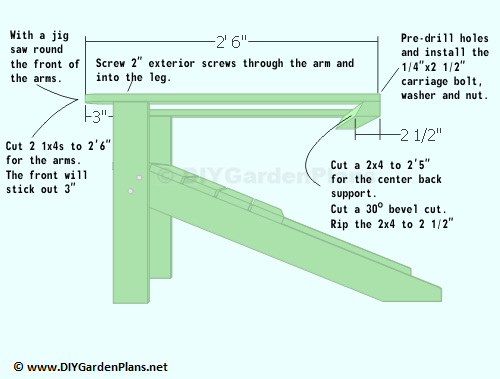

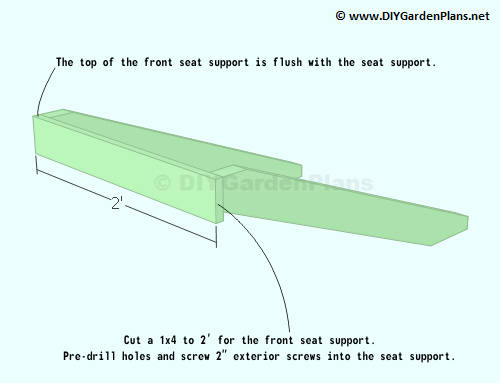

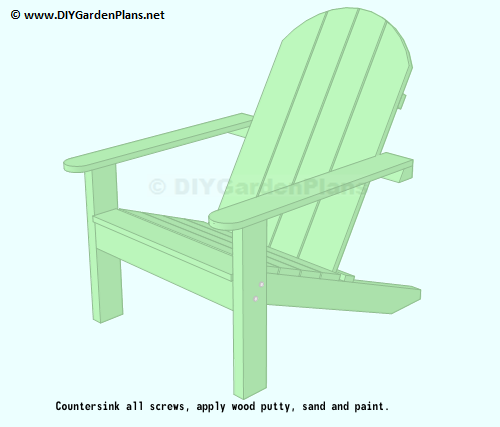

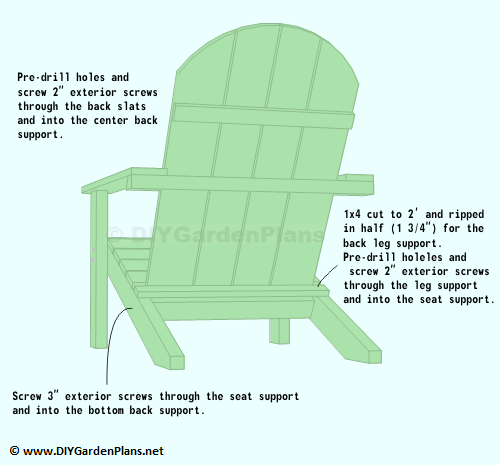

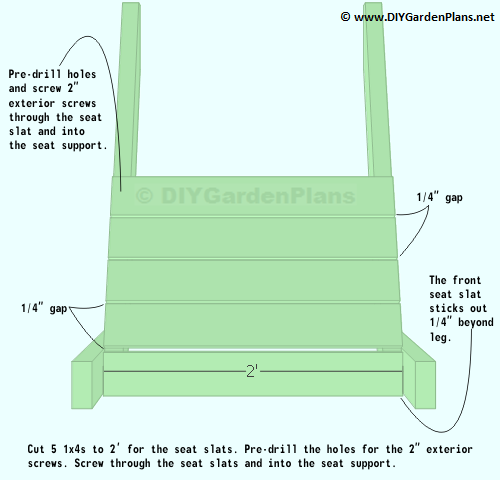

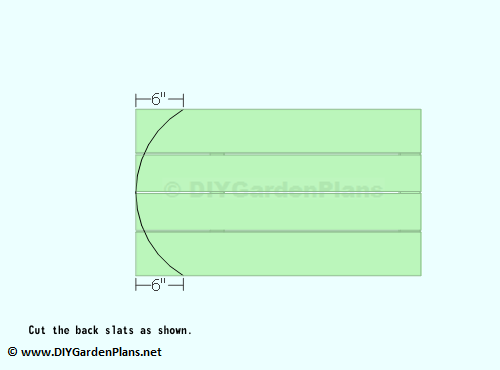

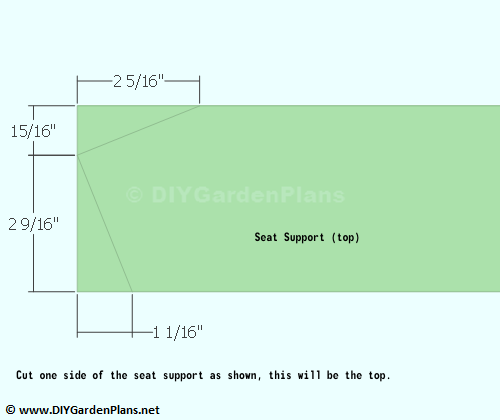

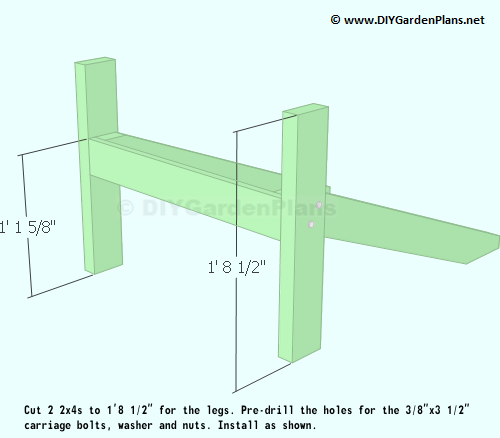

Assembly Instructions

.

Type:
Size
Width X Depth:
Price:
DIY Adirondack Chair
2'5"x3'11/16" $1 DIY Adirondack Chair
