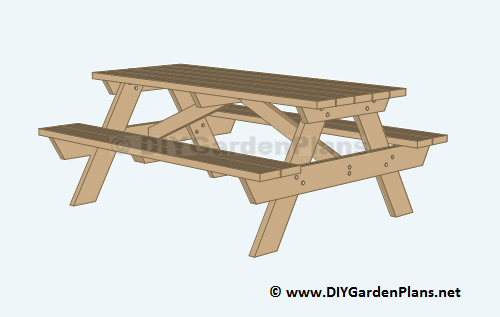

DIY Project: Picnic Table Plans

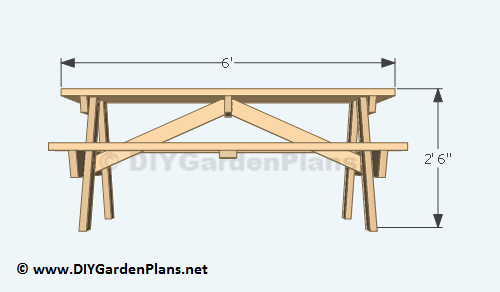

These plans will show you how to build a 6' picnic table.



Picnic Table: Material / Cut List

Disc. Qty. Size

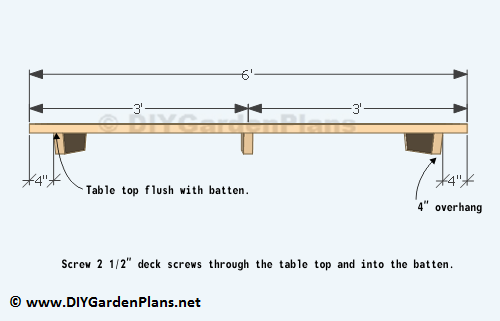

table top (2x6) 5 6'
batten (2x4) 3 2'4 1/2"

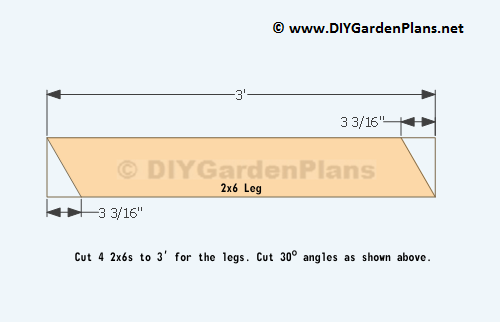

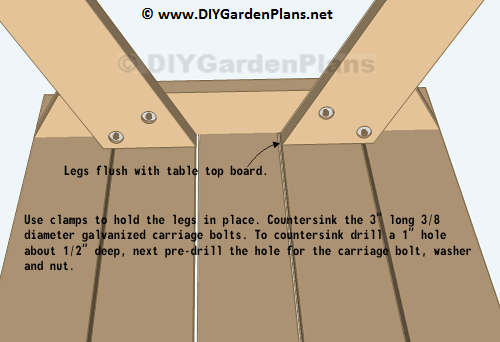

legs (2x6) 4 3'

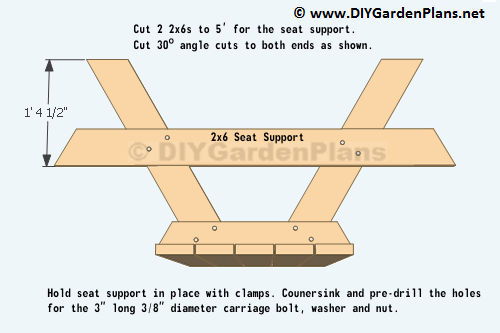

seat support (2x6) 2 5'

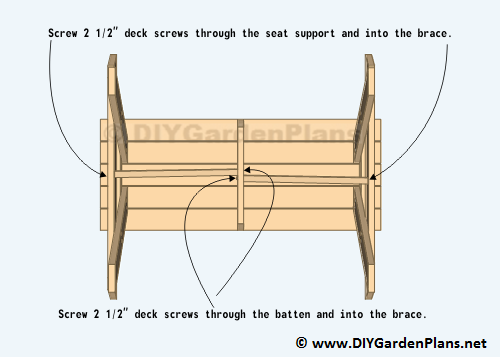

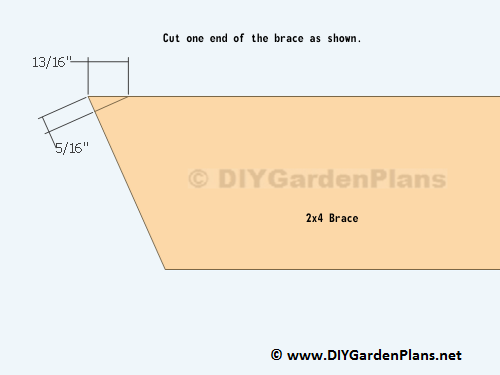

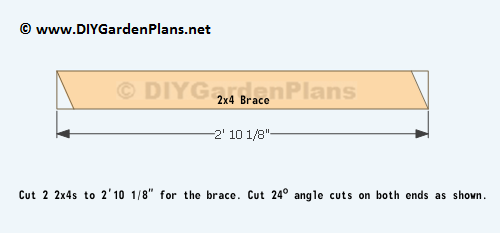

brace (2x4) 2 2'10 1/8

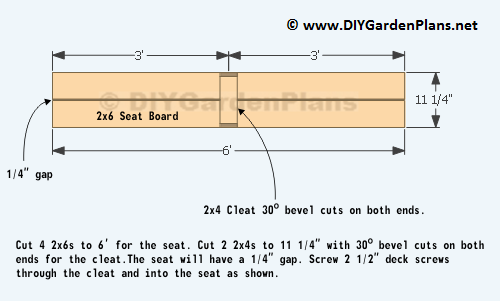

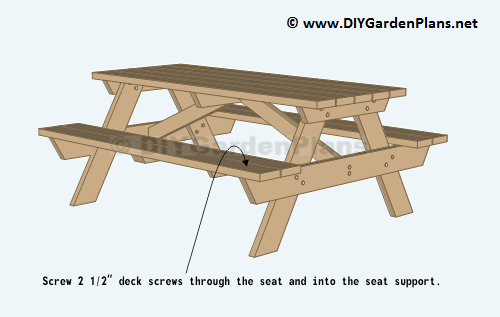

seat (2x6) 4 6'
cleat (2x4) 2 11 1/4"

Picnic Table: Shopping List

Since lumber can be purchased in diffrent sizes the shopping list will vary. Study the cut list and make changes if needed.

Disc. Qty. Size
table top (2x6) 2 12'
table top (2x6) 1 8'
batten (2x4) 1 8'
legs (2x6) 1 12'
seat support (2x6) 1 10'
seat (2x6) 2 12'
brace, cleat (2x4) 1 8'
Hardware
3" long 3/8" diameter carriage bolts -nuts-washers 16
2 1/2″ deck screws
Type:
Size
Depth X Width:
Price:
DIY Picnic Table
5'x6' $1 DIY Picnic Table
